SYSCAD - CAD for metal construction |
![]() ![]() ![]() |
Special profiles |
Customization > Special profiles |

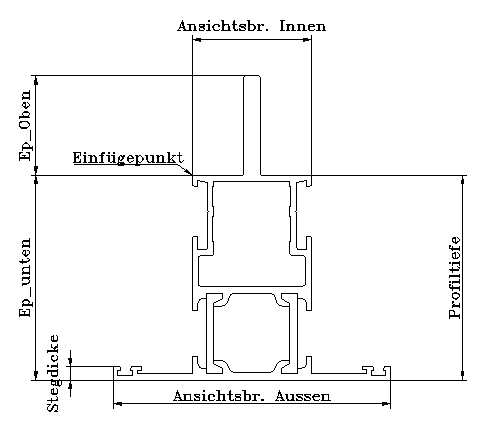

Toolbox: SYSCAD Programs With the help of this function it is possible to use special profiles within the generation of sections. The profiles need to comply in function and further parts (connectors, corner cleats) with a SYSTEM profile. Currently the function is only available for frame profiles, T-bars, mullions, transoms and face caps. These special profiles are defined in the dialog box DEFINE SPECIAL PROFILE of the toolbox SYSCAD Programs. Press QUIT to close the data base. The alterations are saved in the data base. Press NEW to define a new special profile. Specify the system profile that forms the basis of the special profile. The fields of the data base are filled with the values of the system profile to assist you. Press DELETE to delete the currently displayed record. Press PRINT to print data base entries of the currently displayed record. Press SAVE to adopt the alterations of the input fields. The input logic of the data base fields is according to the following diagram: The values of Ep_unten and Ep_oben indicate the distance of the dimensioning in the sectional drawing to the insertion point. |
