Tray configures

Tray configures:

With the command TABLETT CONFIGURE you can fix the four menu areas and the Zeigebereich. Each menu area becomes through three points, that Zeigebereich defines through two points.

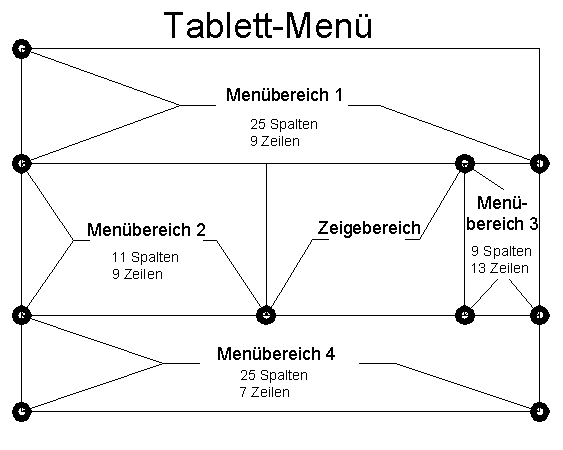

The definition points as well as the number of the lines and splits are stated in the below-mentioned illustration.

If you would like to use only parts of our tray, you can already declare this at the installation or later over entries in the file SYSCAD.MNL in the SYSCAD - table does.

in the 5. Line:

Tray active: (setq SYSCAD_TABLETT T)

Tray inactive: , setq SYSCAD_TABLETT NILE,
