Cover contour in view

 Generating sections > Cut list > Cover contour in view



Toolbar: SYSCAD Generating sections ->  SYSFLY view -> Cover contour in view (vertically continuous) Cover contour in view (horizontally continuous)



Ribbon: SYSCAD Gener. Sections -> Cut List -> Cover contour in view (vertically continuous) Cover contour in view (horizontally continuous)





These commands create a cover contour from the additional visible profile edges on SYSCAD profiles.

•"Cover contour in view (vertically continuous)" Cover contour in view (vertically continuous)

•"Cover contour in view (horizontally continuous)" Cover contour in view (horizontally continuous)

The command always works for a closed profile frame.



Example in the Gutmann wood-aluminium system (Mira Contour TWT):

Abdeckkontur_01

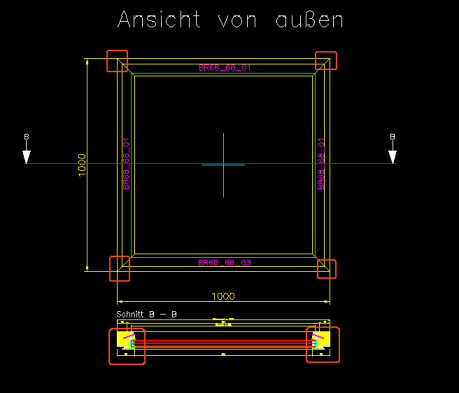

Frame classically drawn with the Turbo view of SYSCAD.





Frame: (left, right, top)



Abdeckkontur_03



Rahmen: (unten)



Abdeckkontur_04

Abdeckkontur_02

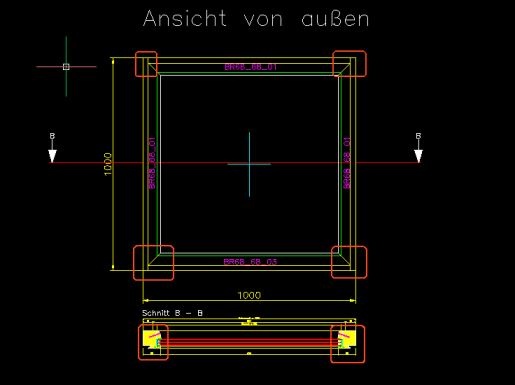

Result after executing the command: "Cover contour in view (vertically continuous)" Cover contour in view (vertically continuous)
