Bemassungstexte / Höhenkotentexte

Leader: Toolbar: SYSCAD-Dimension ->

Settings and defaults under: SYSCAD-Variable / Dimension / Dimension text

Dimension text / text for vertical levels: Toolbar: SYSCAD-Dimension or -

With this commands, you could add some text to your demensions, denominations or vertical levels.

Changing the settings is possible in the SYSCAD-Variable / Dimension / Dimension text.

The following options are available:

Führungstexte / Bemassungstexte / Höhenkotentexte

select the layer

select your dimension style

New text or choose from the list

delete from list or add to list

The settings for the dimension texts 1-5 could work with this logik:

Your text	=>	"Your text" in front of the dimension or the existing text
Your text <>	=>	"Your text" in front of the dimension or the existing text
Your text 1 <> Your text 2	=>	"Your text 1" in front of the dimension and ""Your text 2" behind the dimension
<> Your text	=>	"Your text" behind the dimension

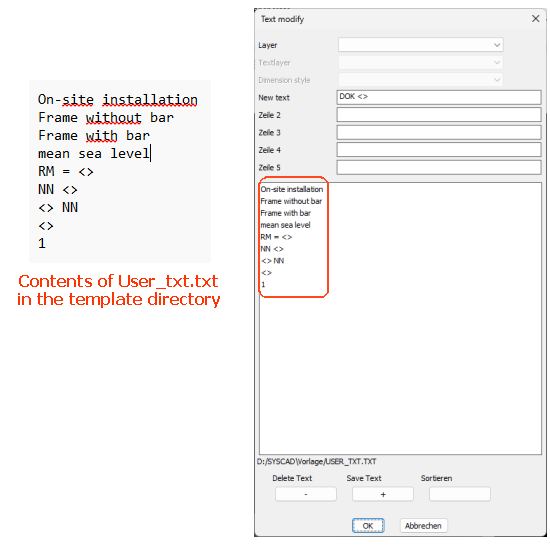

If no variable is defined, the User_txt.txt from the template directory is used.	=>

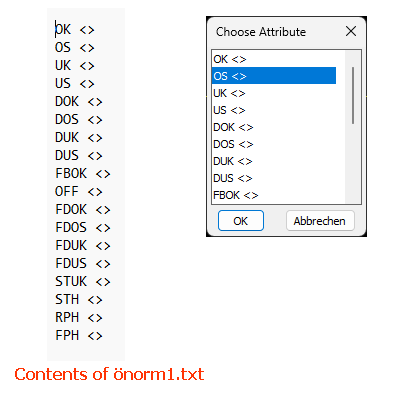

Own text file defined in: SYSCAD\Template SYSCAD\CFG SYSCAD DWG search paths (For example: önorm1.txt / path: "D:\SYSCAD\VORLAGE\önorm1.txt"	=>

The command "Convert reference dimension" deletes the text of labeled dimension or vertical levels (indication of altitudes) and transfers the SYSCAD dimensions into normal associative AutoCAD dimensions.

•If a text style with a fixed text height is selected, the defined text height is set in the mask.

•If labelling scales are defined (SYSCAD-Variable / Denomination / Lettering scale) these labelling scales are assigned to the text.

•Texts selected before the call are transferred to the text assignment dialogue box.

Leader / dimension text / text in vertical levels
