How to start

 Generating sections > How to start

Toolbar: SYSCAD-Generating-sections

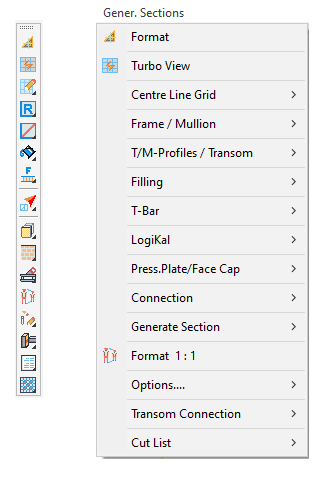

Pull-down menu: Gener. Sections

Ribbon: Gener. Sections

Choose the supplier and the profile series with the Profile System Dialog.

Profile library

When choosing a profile series, the corresponding pull-down menu with a listing of the individual profile groups is opening up. Now you can use the additional menu GENERATING SECTIONS at the right.

Werkzeugkasten und Pulldownmenü SCHNITTGENERIERUNG

The menu items of GENERATING SECTIONS are to be applied in the sequence represented in the menu.

















.

A Ribbon bar is also available for this purpose.

ribbon_schnittgen
