Toolbars

The basic procedure should be taken from the AutoCAD/BricsCAD help. We only want to show you additional possibilities and important procedures here.

Step 1

Rename the file USER.MNS

If you want to define your own toolboxes, you should rename the file USER.MNS (e.g. MEIER.MNS). This file will not be overwritten during a SYSCAD update. You can then reload your MNS file with the command Menu Load.

The menu group USER then appears in the dialogue box.

Close the dialogue box with the command Close.

Step 2

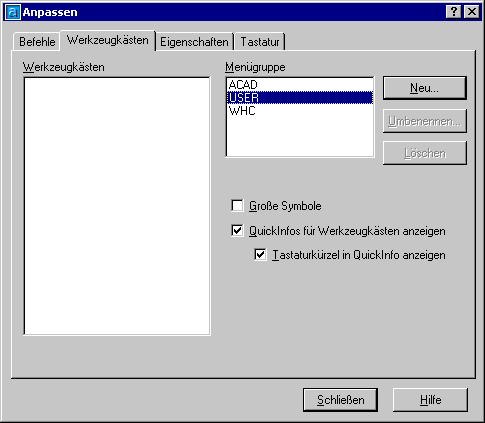

For all adjustments to your toolboxes, the menu group USERmust be  active in thedialogue box shown below . (Please note that after pressing the NEW button , you will be switched back to the ACAD menu group ). This is the only way to ensure that your adjustments are not overwritten during aSYSCAD® update.

Hint:

If you want to create a toolbox that contains both pure AutoCAD/BricsCAD and SYSCAD icons, you must save the SYSCAD icons on your hard disk.

To do this, click on the desired icon with the right mouse button while the toolbox dialogue box is open. The following dialogue box appears on the screen (usually in the lower right area of the screen).

Click here on EDIT.

Change the symbol if necessary and then click on SAVE.

In this dialogue box, be sure to complete the process with APPLY. Only then will your new toolbox symbols appear correctly.
