Toolbar: SYSCAD-Programs ->
|
|
Ribbon -> Gener. Sections -> Wall attachment -> Flyout Wall ->
|
|
|
|

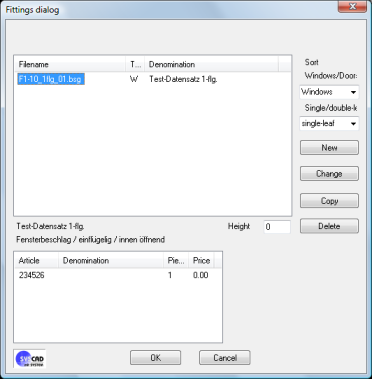

This function can be used to define customized fittings.
|
Press NEW to create a new record.
Press CHANGE to modify an existing record.
With CHANGE you enter your articles with quantity or length into the fields.
|
|
The field "Length" can be used to calculated with the variables of vent height H, vent width W and handle height G. With fittings for double vent windows or double leaf doors two BSG files are created. Please do not define a handle height with double vent windows French type.
Press COPY to create a new record with the properties of an existing record.
|
The fittings can also be usedto evaluate glass supports, sheet metal, insulation etc. in the infill with the colour assignment for filling function.
|
