Special profiles

Toolbar: SYSCAD-Programs -> Miscellaneous ->

Ribbon -> Gener. Section -> Wall attachment -> Flyout Wall ->

With this function you can use special profiles in the cut generation. The profiles must correspond to a SYSTEM profile in their function and in the subsequent parts (connectors, corner brackets).

At the moment the function is only available for frames, mullions, posts, transoms and cover profiles.

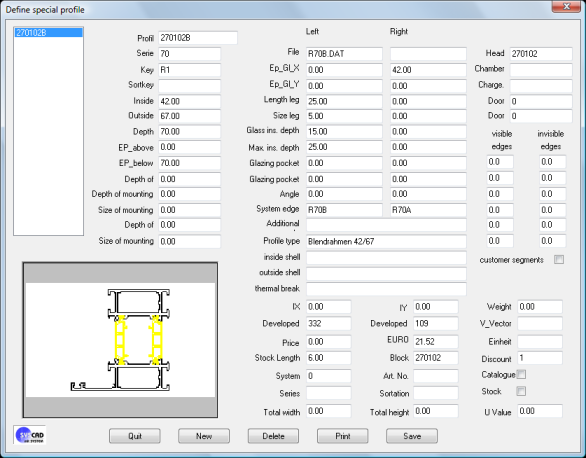

These special profiles are defined in the dialogue box DEFINE SPECIAL PROFILE from the SYSCAD programmes toolbox.

The database is closed with QUIT. The changes to the database are written.

With NEW you create a new special profile. You only have to specify the profile from which the special profile is derived. To help you, the database fields are filled with the values of the SYSTEM profile.

With DELETE the current data record is deleted.

PRINT prints out the database entries for the current record.

With SAVE your changes in the input fields are accepted.

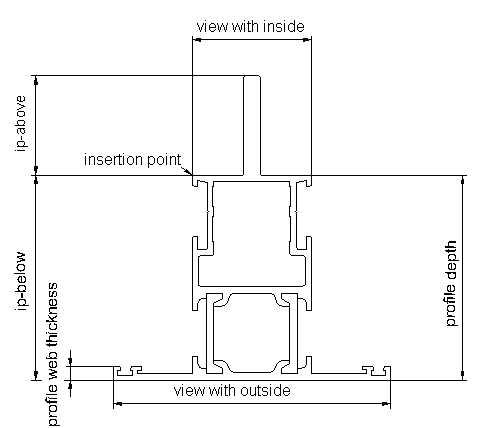

The input logic in the database fields corresponds to the following picture:

The two values for Ip_down and Ip_up indicate the distance of the dimension in the section generation to the insertion point.
