Cut List Position

Toolbox: SYSCAD GENERATING SECTIONS

Generates a cut list from the elevation of your SYSCAD® drawing.

Draw a window across the desired position after the program call. With the inquiry 'insertion point of the cut list' its size is represented as a rectangle and can be positioned in the drawing. In addition you can insert the calculated element price into the drawing by clicking onto a point in the drawing.

Example:

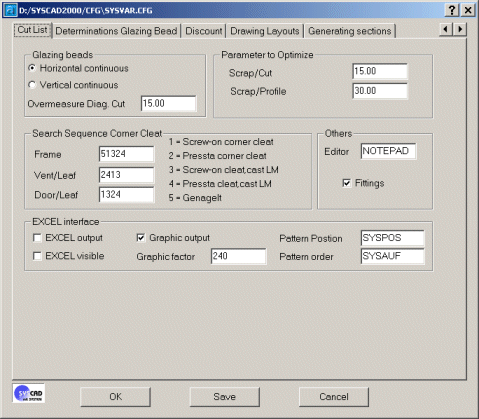

From version 14.07 as well as 2000.4, the results of the cut list position can be transferred to Microsoft Excel. To do so, please activate the check box "Excel output" in the dialog box CUT LIST at SYSCAD VARIABLE.
