SYSCAD 2025SR1 (October 2025)

New commands and options:

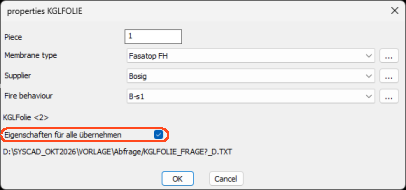

•With the "Set properties" command  , you can now select "Apply properties to all" when selecting several identical objects (membrane, sheets, etc.).

Changes:

•"Export all layouts" command - A prompt has been introduced which asks the user for confirmation before executing this potentially time-consuming command.

With the "Sheet developed view" command command, the hidden lines and centre lines are not drawn from the new version if the VERDECKKT (KGL_OBJETKLAYER_07) or MITTE (KGL_OBJEKTLAYER_08) layers are locked or frozen.

Error correction:

•Standard parts library / Metric connections / Display errors for variants with a decimal number (e.g. M 1.6; M 2.5) have been corrected.

•Command: "Clone block" Error in AutoCAD 2025/2026 corrected.

•Command "Indication of altidude (block)" Fixed an error when using annotative blocks.

•"Indication of altidude (block)"command The case when the base dimension was a decimal number (e.g.: 5.6) led to incorrect dimensions when moving or copying. The "Update dimensions" command must be used. This problem has been fixed.

•Fixed an error with various DCL files ("DCL without OK button") in BricsCAD V26.

CAD library:

•Aluminium / Various dimensions added

•Standard screws / pan-head screw TX ISO 15482 - corrected to ISO 15481

•Standard screws / hexagon head screw w. shank ISO 4014 - dimensions corrected

•Standard screws / hexagon head screw with shank DIN 931 - dimensions corrected + added

•Standard screws / countersunk-head tapping screw TX ISO 14587 - dimensions added

•Standard screws / pan-head drilling screws cross recess ISO 15481 DIN 7504 M changed to DIN 7504 N

•Standard Screws / Countersunk head tapping screw TX ISO 14587 - dimension added

•Standard screws / countersunk head screw hexagon socket ISO 10642 - error corrected (length M 12)

•Standard screws / threaded rods DIN 975 (removed)

•Standard screws / threaded rods DIN 976 dimensions revised (lengths freely selectable)

•

•Standard nuts / hexagon nuts ISO 4032 - dimensions added and corrected

•

•Standard Connections / Hexagon head bolt with shank - DIN 931/ISO 4014 - separated and revised

•Standard Miscellaneous / Welding studs ISO 13918 - insertion points corrected

•Standard Miscellaneous / Welding studs ISO 13918 - Thread representation added

•
